Base Metal

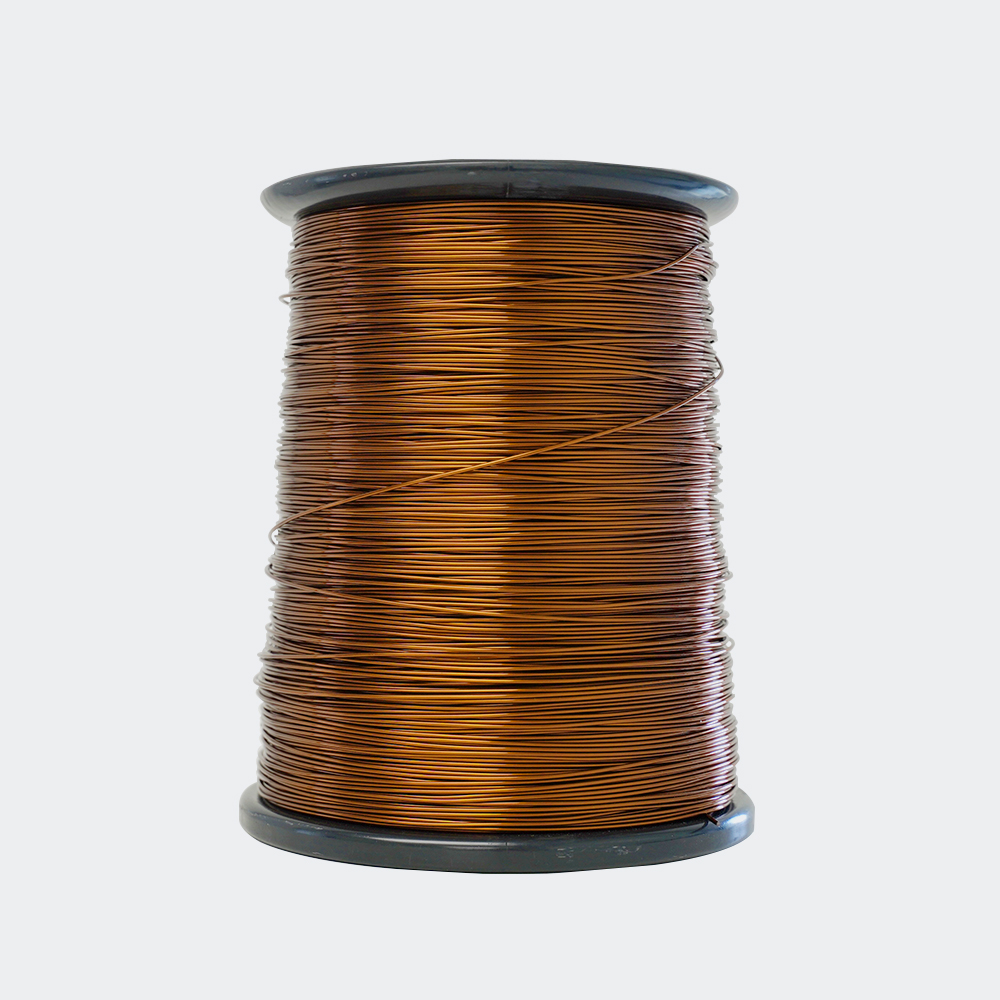

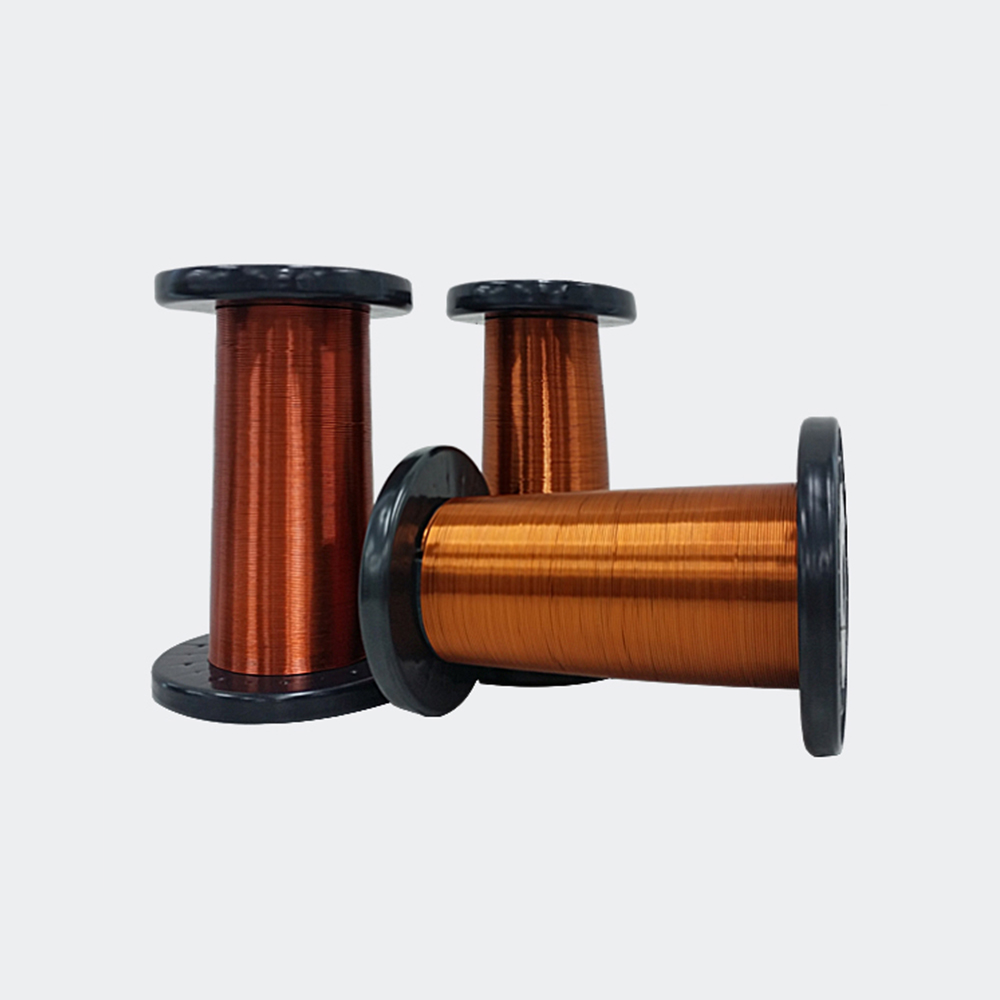

Magnet Wire

Magnet wire is one of the core materials in manufacturing heavy electric products, home appliances, and automobile parts. It is usually wound in the form of a coil inside the electric device and converts electric energy into kinetic energy or vice versa, as classified into PEW, AIW, EI-AIW, SL-EI-AIW, SB-EI-AIW, etc. according to the characteristics.

PEW

*PEW(Polyester Wire)

  • Applications : transformer, motor
  • Features : Heat resistance, chemical resistance, solvent resistance, dielectric strength, and excellent electrical properties
  • Specs : KS C 3107
  • UL File Number : E109312
  • Heat Resistance : F(155℃)
AIW

*AIW (Polyamide-imide Wire):

  • Applications : automobile motor, heat-resistant motor
  • Features : Heat resistance, best overload resistance, and excellent chemical properties
  • Specs : Taihan Specs, JCS 334
  • UL File Number : E109312
  • Heat Resistance : C(220℃)
EI-AIW

*EI-AIW (Polyester-imide Polyamide-imide Wire):

  • Applications : automobile motor, cooling fan motor
  • Features : Thermal properties, overload properties, excellent chemical properties, and strong against R-22 refrigerant
  • Specs : Taihan Specs, NEMA MW-35C/MW-73C
  • UL File Number : E109312
  • Heat Resistance : N(200℃)
SL-EI-AIW

*SL-EI-AIW (Self-lubricating Polyester-imide Polyamide-imide Wire)

  • Applications : Cooling fan motor for electronic appliances / automobile
  • Features : Excellent chemical properties, can be used with R-134a as an alternative refrigerant
  • Specs : Taihan Specs, NEMA MW-35C/MW-73C
  • UL File Number : E109312
  • Heat Resistance : N(200℃)
SB-EI-AIW

*SB-EI-AIW (Self-bonding polyester imide polyamide-imide wire)

  • Applications : clutch coils, motor
  • Specs : Taihan Specs
  • Features : Thermal properties and excellent chemical properties
  • Heat Resistance : N(200℃)
