As cables insulated over conductors with cross-linked polyethylene (XLPE), mid/low-voltage cables refer to general power distribution cables from 0.6/1kV to 22.9kV, which provide reliable power mainly for industrial complexes or commercial and residential buildings.

22.9kV MV/LV Cables

As 22.9kV-y multi-grounding power cables for underground distribution lines,
22.9kV MV/LV cables have excellent water penetration blocking performance and flame retardant properties.

Mid/Low-Voltage Cables (MV/LV)

As power cables for distribution lines from 0.6/1kV to 6/10kV, mid/low-voltage cables (MV/LV) are used in commercial, residential buildings and industrial distribution lines.

Types and Uses
  • 22.9kV concentric neutral conductor water-proof power cable 22.9kV-y CNCV-W): Suitable for outdoor vertical standing
  • 22.9kV concentric neutral conductor tree-retardant power cable (22.9kV-y TR CNCV-W)
    22.9kV concentric neutral conductor water tree-retardant power cable (22.9kV-y TR CNCE-W)
    22.9kV concentric neutral conductor water tree-retardant aluminum power cable (22.9kV-y TR CNCE-W/AL)
    : Suitable for tasks that may be affected by moisture, such as direct burial or duct pulling
  • 22.9kV concentric neutral conductor flame-retardant power cable (22.9kV-y FR CNCO-W)
    22.9kV concentric neutral conductor water tree-retardant halogen free polyolefin insulated power cable (22.9kV-y FR CNCO-W/AL)
    : Suitable for places or tasks that may be affected by moisture, such as in common areas of electric power districts, substation premises, inside buildings, direct burial, or duct pulling
Features
  • Water treeretardant cross-linked polyethylene can suppress insulators' tree occurrence and block moisture penetration
  • Flame-retardant and eco-friendly materials are used to prevent the spread of fire and minimize the generation of toxic gases
Configuration
and
Specifications
  • Applicable specification : KEPCO standard or Korean wire standard specification
  • Type CNCV-W TR CNCV-W FR CNCO-W,
    FR CNCO-W/AL
    TR CNCE-W,
    TR CNCE-W/AL
    Conductor Annealed copper wire for electrical use or aluminum
    (watertight compressed stranded wire)
    Internal
    semi-conductive Layer
    Semi-conductive thermosetting compound
    Type XLPE TR-XLPE FR CNCO-W : XLPE,
    FR CNCO-W/AL : TR-XLPE
    TR-XLPE
    External
    semi-conductive Layer
    Semi-conductive thermosetting compound
    Neutral Conductor
    (Water-blocking)
    Annealed copper wire
    (inflated tape on top/bottom)
    Annealed copper wire
    (inflated tape at the bottom)
    Sheath Polyvinyl Chloride
    (PVC)
    Polyolefin
    (Halogen free Polyolefin)
    Water-blocking Polyethylene
    (PE)
Types and Uses

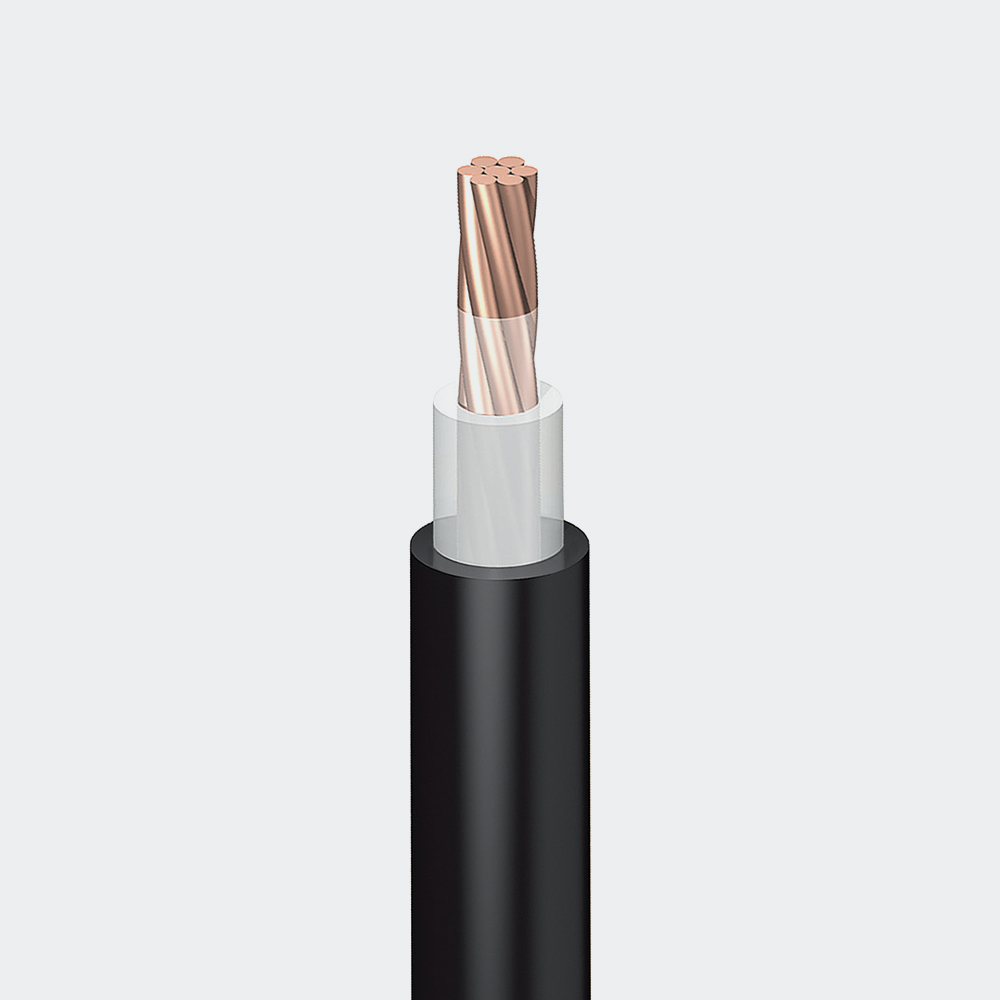

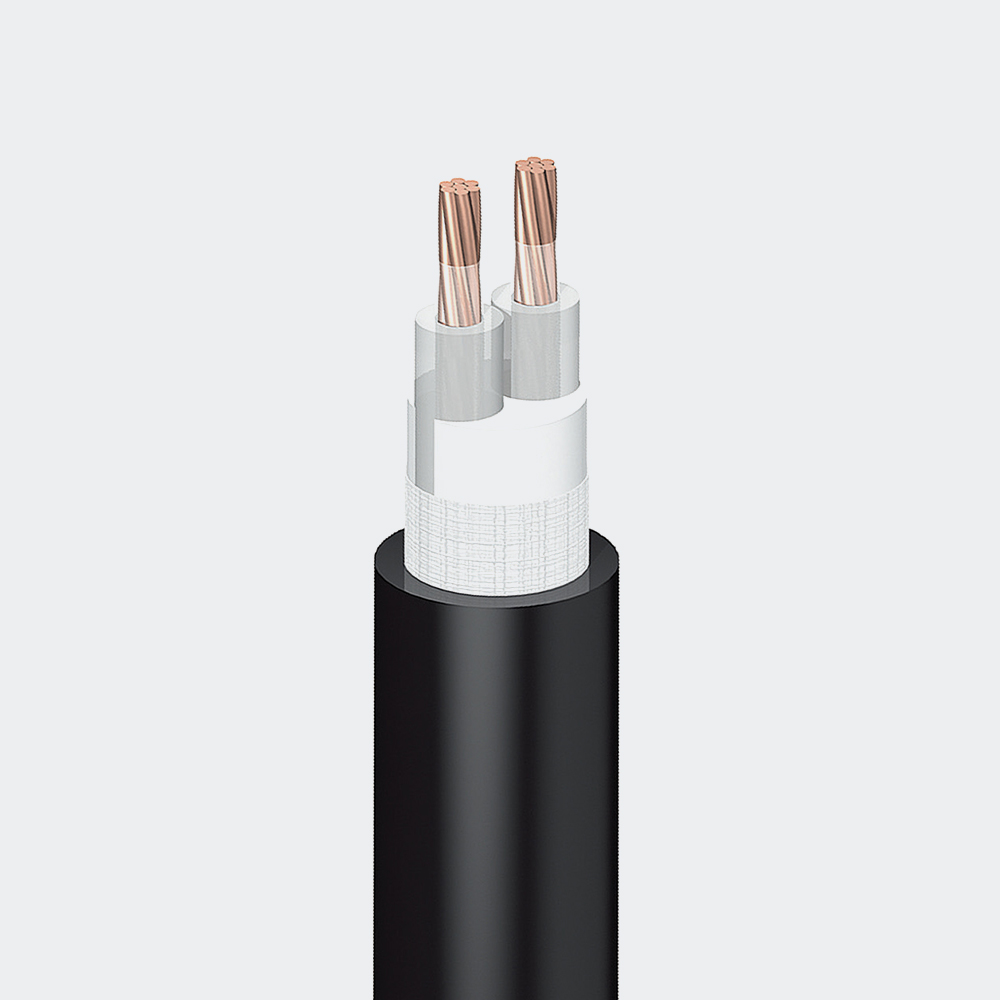

  • 0.6/1kV cross-linked polyethylene cable (CV, TFR-CV, TFR-CV-WB, HFCO): Used for power and lighting circuits with 0.6/1kV or less at residential, building and industrial sites

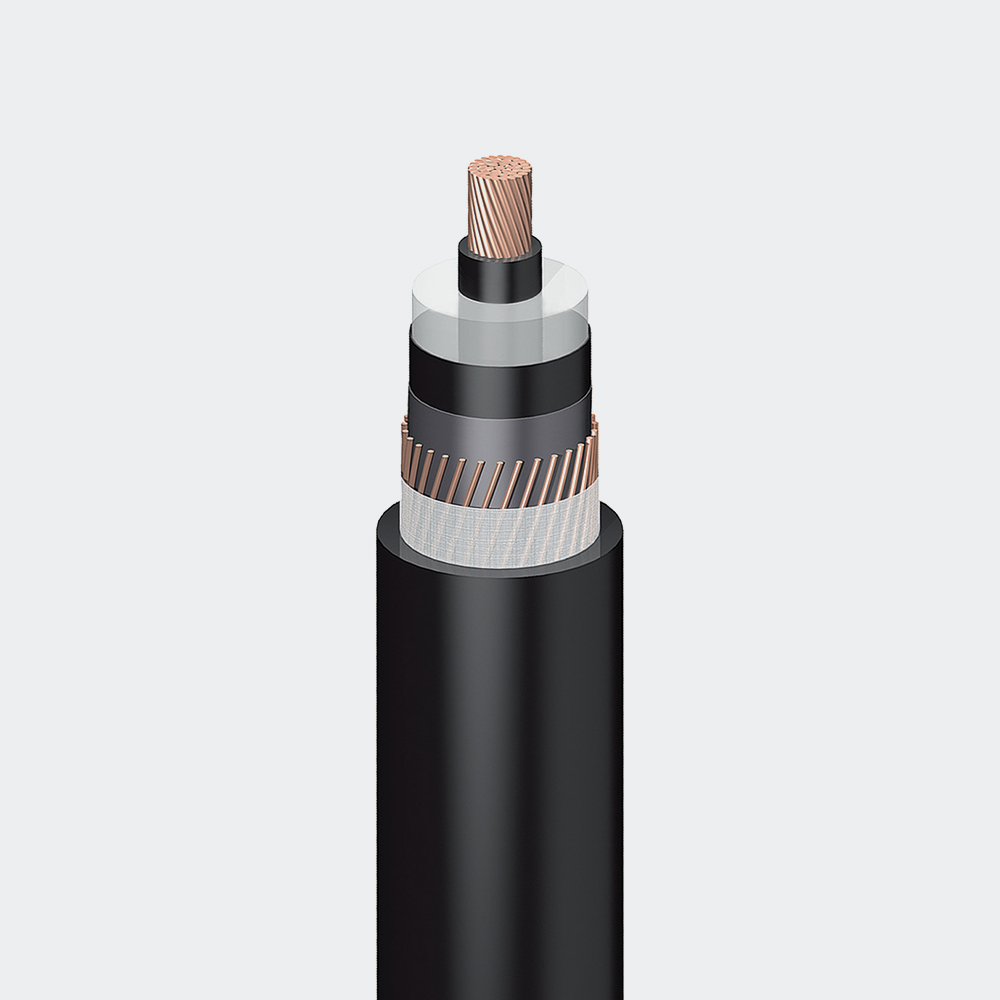

  • 6/10kV cross-linked polyethylene cables (CV, TFR-CV, TFR-CV-WB, HFCO): Used for power circuits with 6/10kV or less in ungrounded or single-ended grounding at buildings and industrial sites
Features
  • KS certification and electrical appliance safety certification: Ensuring the reliability of products
  • Excellent heat resistance by using cross-linked polyethylene with high heat resistance as an insulator
  • Prevents fire spread with excellent flame-retardant materials
  • Improved long-term use stability with strong sheath water resistance
Configuration
and
Specifications

1) 0.6 / 1kV Cross-linked polyethylene cable (CV, TFR-CV, TFR-CV-WB, and HFCO)

  • Applicable specification : KS C IEC 60502-1, Taihan's standard specification
  • Type CV TFR-CV TFR-CV-WB HFCO
    Conductor Annealed copper wire for electricity
    (KS C IEC 60228, class 2)
    Insulation Cross-linked polyethylene (XLPE)
    Combination In case of multi-core,
    combine the core with suitable inclusions and bind them to keep the circular shape.
    Sheath PVC Flame-retardant PVC Water-blocking
    flame-retardant PVC
    Low Toxic Flame-Retardant
    Polyolefin
    2) 6/10kV cross-linked polyethylene cable (CV, TFR-CV, TFR-CV-WB, and HFCO)
  • Applicable specification : KS C IEC 60502-2, Taihan's standard specification
  • Type CV TFR-CV TFR-CV-WB HFCO
    Conductor Annealed copper wire for electricity
    (KS C IEC 60228, class 2)
    Internal
    semi-conductive Layer
    Semi-conductive thermosetting compound
    Insulation Cross-linked polyethylene (XLPE)
    External
    semi-conductive Layer
    Semi-conductive thermosetting compound
    Metal Shield Copper Tape
    Combination In case of multi-core,
    combine the core with suitable inclusions and bind them to keep the circular shape.
    Sheath PVC Flame-retardant PVC Water-blocking
    flame-retardant PVC
    Low Toxic Flame-Retardant
    Polyolefin
